The Ultimate Guide To CNC Milling Machines


CNC Milling Machines are used regularly in a number of important commercial and industrial industries, from the construction sector, through to smaller-scale design tasks and applications. With an array of crucial parts, varied maintenance needs and specific uses based on the make and model, maintaining functional machinery can be a tough task. The specialists at Panda Engineering are capable of taking you through various compatible parts and crucial components, with this ‘ultimate guide’ serving as an introduction and explanation of CNC Milling Machines and their unique purposes. Continue reading and further your understanding of these fantastic cutting devices.

Milling Machines And Their Varied Uses

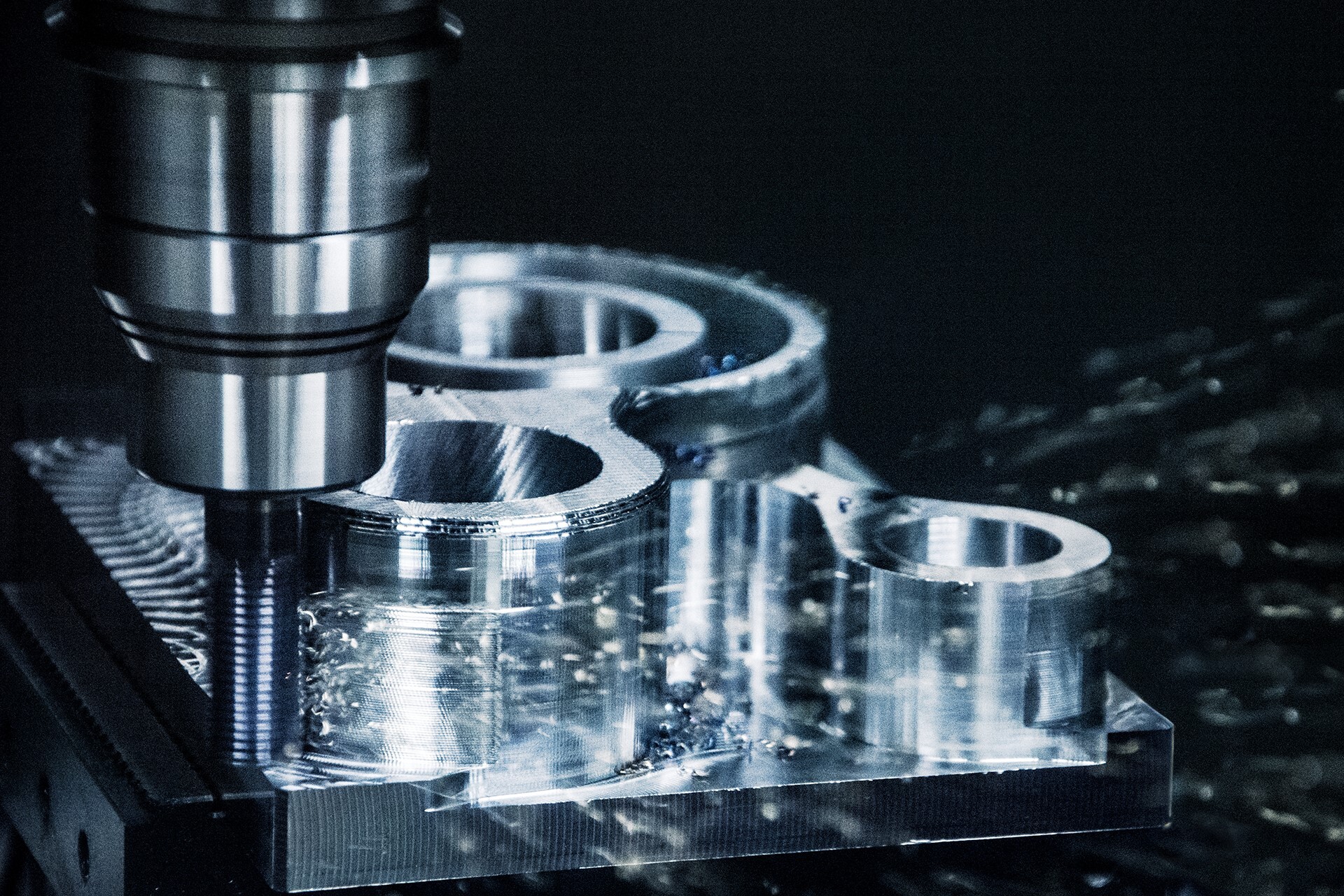

In simple terms, milling machines are a type of cutting, roughing or drilling machine, working on various shapes and sizes of material. Many different types of machinery exist, and as a result, there are all sorts of parts and components to maintain. There are both traditional, manual milling machines and computer-operated machines (seen here), which suit various different working environments respectively. A machine will predominantly go to work on solid materials, usually metal, and this takes place via high speed rotations of the milling cutter component, and corresponding movement of the axes.

This type of technology for manufacturing various parts by cutting them out is called machining, and sees widespread application in The United Kingdom and beyond. Modern milling machines are automated versions of their manual counterparts, and operate with digital instructions to produce products on a larger scale. These essential machines can be calibrated either horizontally and vertically, able to deal with bulky thick materials and deeper grooves, or intricate smaller and thinner parts. The computer-assisted form of manufacture is known as CNC (Computer Numerical Control) Manufacturing.

Consider The Contexts

Hobbyists and small workshops are able to benefit from milling machines and their applications on a smaller scale, but CNC Manufacturing and CNC Grinding is utilised more frequently within bustling industries including the aerospace industry, construction trade and general large-scale manufacturing of steel and aluminium objects at volume. Below are just a handful of the trades which require functional milling machines for a successful output:

Automotive And Aviation

Many metal components and parts created for the automotive industry are crafted using CNC milling machines, with high-accuracy output a key requirement. Creating either complete parts of the car in question, or smaller inclusions, this technology is also used to develop components for motorcycles, industrial vehicles and many more automotive options. Among the most important and intricate parts created by CNC milling machines are flywheels, piston rods, pumps, and cylinders.

Not just restricted to ground vehicles, there are thousands of moving parts in any given aircraft which must be manufactured too. Most airlines work with multiple CNC milling services to get what they need, and functional machinery will only correctly serve these stakeholders if properly equipped.

Transport And Electronics

The booming transportation and electronics industries require robust and long-lasting components for daily interaction. High-speed trains, shuttle buses and other popular commuter essentials have to deal with the strains of constant use, meaning that all parts must fit together perfectly with minimal room for error.

On the other hand, the multibillion pound consumer electronics sector is extremely reliant on CNC manufacturing, perhaps even being the most widely-dependent industry on computerised machining and milling. The electronic components of car parts, televisions, laptops and mobile gadgets are all processed partially or wholly using CNC processes.

General Manufacturing

Within the general manufacturing trade in which volume of production is important, CNC machining centres are often utilised. Many closed and computer-controlled milling machines will be used at once to produce an output of the desired metal, wooden or plastic component, and these modernised utilities are high-volume, high-precision units.

If any household device was bought over the past decade, there is a very good chance that CNC milling machines played a big part in the manufacture. Lots of components included in utilities and gadgets will have been created using the automatic procedures programmed into machines. Smartphone parts, TV components and fiddly thinner parts are all created from this process.

Component Rundown

Despite their widespread use in the 21st Century, CNC milling machines are complex pieces of machinery, requiring an array of specialised components to function correctly. Below is a basic rundown of the essentials - many of which can be acquired as replacements online from Panda Engineering:

Frame

The frame of a milling machine is the main structure that supports it, helping to provide stability and a rigid balanced base. Within the frame, the machine headstock is where the main spindle will be mounted.

Spindle

The spindle is arguably the key component within any CNC milling machine, normally including a rotating assembly, and a distinct section where tool holders will be positioned. The corresponding shaft is where the tool will be attached. Depending on the machine type, the spindle will be vertically or horizontally positioned.

Axes

Axes on a CNC machine refer to the number of ways the milling technique can shape the workpiece in question, and there are typically three axes that the machine can work along. Including the X-axis, Y-axis, and Z-axis. The X-axis represents the vertical axis, these three specific movements make up a typical 3-axis CNC machine.

Control Panel

As the title would suggest, control panels are the control hub of the CNC machine, containing the electronics for different cutting actions. The control panel will have a CNC monitor and programming buttons, offering a manual function in many instances.

PPE And Safety

Safety is absolutely essential when using any heavy machinery, and irresponsible use of CNC milling machines can be extremely dangerous. Personal protective equipment (PPE) acts as a preventative measure, lessening the potential for injuries and harmful actions. Any individual using a milling device should consider these measures before operating machinery, while you are legally responsible for ensuring your employees are provided with adequate PPE:

Facemasks

Facemasks are multifunctional and retain everyday use in workshops and large scale machinery plants. Often covering the eyes of an individual with protective transparent goggles, as well as protecting the nose and mouth area from inhaling fumes or small particles, a face mask will prevent the accumulation of dustlike substances within the sensitive areas of your face, avoiding irritation.

Gloves And Boots

Gloves and boots are important when dealing with heavy machinery and sharp blades, protecting your limbs from blunt force and lacerations. Steel toe safety boots are preferable, while heavy duty work gloves should provide additional protection from blades, while maintaining a flexible material. Above all else, exercise caution when using industrial machinery, and follow safety instructions as your CNC device specifies.

Panda Engineering: Metal Fabrications, CNC Components And More

Panda Engineering are your reliable providers of precision CNC machinery, as well as comprehensive welding and fabrication services. We offer a wide range of high quality ‘in-house’ subcontract CNC milling and machining offerings, all overseen by a friendly and experienced team. From one-off tasks, to high volume batch work, we provide only the highest quality precision machined parts and components - in a huge variety of materials. Look no further than Panda Engineering if you are searching for the best CNC milling and wire eroding services in the industry, built to serve a wide range of purposes.

Serving West Yorkshire and beyond, trust Panda Engineering to cater engineering solutions to you. As the leading manufacturing company in Bradford, we are able to deliver fast turnaround fabrication and CNC turning machine components to exact specifications. With health and safety prioritised, as well as a complete dedication to adaptability and flexibility, contact us today via 01274 744887, or by emailing info@panda-engineering.co.uk with any queries you may have. We would be more than happy to help, regardless of your unique needs.
